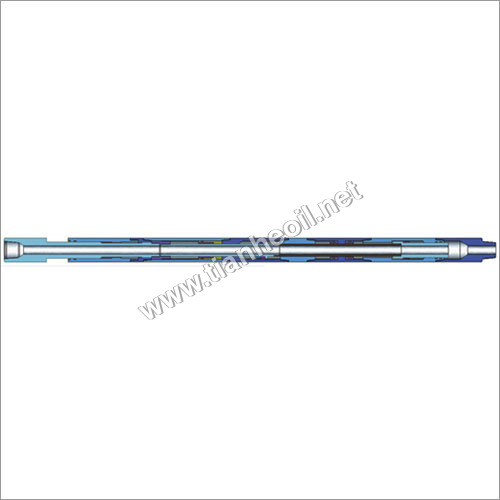

Double Acting Hydraulic Drilling Jar

Double Acting Hydraulic Drilling Jar
Double Acting Hydraulic Drilling Jar
Product Code : 29
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Set/Sets
Product Description

Hydraulic Drilling Jar

Working with motive to gain maximum customer contentment, we always strive to offer quality assured Double Acting Hydraulic Drilling Jar. This jar can be employed to release the drilling tools that are stuck in the earth. With the help of this tool, the operator can make adjustments to the jarring force and direction on the ground without the need to adjust the torque. Our team of skilled professionals manufactures this Double Acting Hydraulic Drilling Jar using latest production technology and best grade materials.

Features:

  • Abrasion resistance

  • Superior finish

  • Corrosion resistance


Specifications- QYSZ Double Acting Hydraulic Drilling Jar

Model

QYSZ121B

QYSZ159C

QYSZ165B

QYSZ172C

QYSZ178B

QYSZ203B

QYSZ241

Product Code

1808000

1810000

1811000

1812000

1813000

1815000

1817000

O.D. (mm)

121

159

165

172

178

203

241

I.D. (mm)

50.8

69

69

69

69

76.2

76.2

API Connection

NC38

NC46

NC50

NC50

NC50

6 5/8 REG

7 5/8 REG

Overall Length (mm)

9100

9450

9450

9450

8890

9700

9700

Total Weight (kg)

530

980

1020

1110

1290

1660

2400

Up Jarring Free Stroke (mm)

127

190

190

190

190

190

190

Down Jarring Free Stroke (mm)

165

190

190

190

190

190

190

Max. Up Jarring Force (kn)

350

700

700

700

800

1000

1250

Max. Down Jarring Force (kn)

200

350

350

350

400

500

650

Max. Tensile Load (kn)

1500

3750

3750

3750

4650

6650

7350

Working Pull Force (kn)

1000

2000

2000

2000

2400

2800

3500

Max. Torque Load (kN.m)

18

75

75

75

91

133

180

Working Torque (kN.m)

10

25

25

25

30

35

40

Pump Area (cm2)

18

26

26

26

51

58

78
