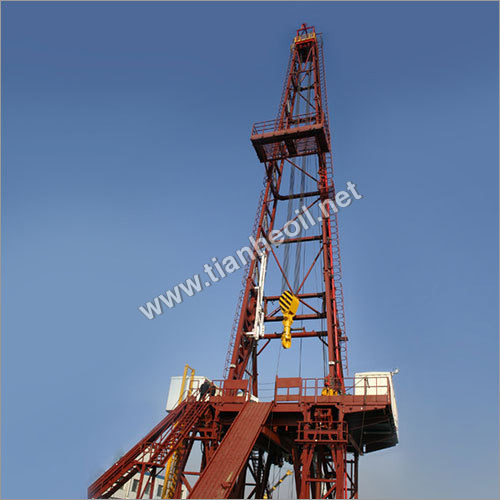

Industrial Land Drilling Rig

Industrial Land Drilling Rig
Industrial Land Drilling Rig
Product Code : 1500HP
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Set/Sets
Product Description

Industrial Land Drilling Rig

We were founded in the year 1973 with an aim to introduce world class range of tools such as Industrial Land Drilling Rig so as to satisfy diverse demands of construction industry. Widely used for drilling purposes of land, this rig is acknowledged for its rugged construction. Our offered rig is manufactured using latest technology and is widely suitable for all types of drilling works. Available in different technical specification, this Industrial Land Drilling Rig can also by custom-designed as per the specific demand of our prestigious customers.


Technical Specification

U.SMet

TH50/3150L

TH 50/3150LD

TH 50/3150DZ

TH 50/3150DB

Nominal depth

4-1/2'DPftm

11500~16400,3500~5000

11500~16400,3500~5000

11500~16400,3500~5000

11500~16400,3500~5000

5' DPft m

9200~14800 ,2800~4500

9200~14800 ,2800~4500

9200~14800 ,2800~4500

9200~14800 ,2800~4500

Max static hook load KIPS KN

695, 3150

695, 3150

695, 3150

695, 3150

Max load of drilling string KIPS KN

350, 1600

350, 1600

350, 1600

350, 1600

Rated input power of DWhp Kw

1500, 1100

1500, 1100

1500, 1100

1500, 1100

Shifting number of DW

4forward+2reverse

4

4//stepless

stepless

Type of main brake

Disk/band

Disk/band

Disk/band

Disk/band

Type of auxi-brake

EDDY/E.T.N

EDDY/E.T.N

DYNAMIC/EDDY/BAND

DYNAMIC/EDDY/BAND

Dia of drilling lineinmm

1 3/8 35

1 3/8 35

1 3/8 35

1 3/8 35

Max ling number strung

6-7

6-7

6-7

6-7

Dia of traveling sheaveinmm

50, 1270

50, 1270

50, 1270

50, 1270

Opening of RT in mm

37 1/2 952.5

37 1/2 952.5

37 1/2 952.5

37 1/2 952.5

Drive of RT

United drive

Independent drive

Multi-drive/ Independent drive

Multi-drive/ Independent drive

the type of mast





available height of mast ft m

148, 45

148, 45

148, 45

148, 45

Substructure height ftm

20.5, 29.5, 7.5,9,

34.5, 10.5

20.5,29.5, 7.5,9,

34.5,10.5

20.5,29.5, 7.5,9,

34.5, 10.5

20.5,29.5, 7.5,9,

34.5, 10.5

Clearances of drill floor ft m

20,25, 6.12,7.62,

30, 9.12

20,25, 6.12,7.62,

30, 9.12

20,25, 6.12,7.62,

30, 9.12

20,25, 6.12,7.62,

30, 9.12

Power per MPhp Kw

1600, 1180

1600, 1180

1600, 1180

1600, 1180

Number of MP

2

2

2

2

Transmission mode

The whole chain box

The whole chain box

AC-SCR-DC

AC-DC-AC(VFD)

Power of main engine hpkW

1500, 1100

1500, 1100

1500, 1100

1500, 1100

number of main engine

3

3

3

3

Volume of mud tanks BB m3

2100, 320

2100, 320

2100, 320

2100, 320



Trade Information
  • FOB Port
  • Hailin - Heilongjiang, China
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T), Western Union, Paypal, Others
  • Supply Ability
  • As Per Requirement Per Month
  • Delivery Time
  • 45 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard Packaging
  • Main Export Market(s)
  • Asia
  • Certifications
  • ISO 9001:2008
